BLS-2103, HV-Digital, Super Speed, High Torque, Brushless
1/10 Car, 1/810Buggy/Truck, Crawler, RC Heli, 3D Airplane
|
Electrical Specification (Function Of The Performance)
|
|
| Torque At 6.0V | 17.1 kg-cm / 237.5 oz-in |
| Torque At 7.4V | 21.2 kg-cm / 294.5 oz-in |
| Torque At 8.4V | 24.0kg-cm / 333.3oz-in |
| Speed At 6.0V | 0.045 sec / 60° |
| Speed At 7.4V | 0.038 sec / 60° |
| Speed At 8.4V | 0.034 sec / 60° |
|
Apply Environmental Condition
|
|
| Operating Voltage Range | 6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe ) |
|
Control Specification
|
|
| Control System | Digital Controller / 12-Bits ( 4096 Steps ) |
| Dead Bend Width | 0.001ms (1us) |
|
Mechanical Specification
|
|
| Ball Bearing | Dual |
| Type Gears | Nanometer Alloy Gear |
| Motor Type | Premium Brushless Motor |
| Horn / Gear Spline | 25 Teeth (Same as F-Type) |
|
Outline Drawing
|
|
| Dimension (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) | 71.0 ± 1 grams / 2.50 oz |
|

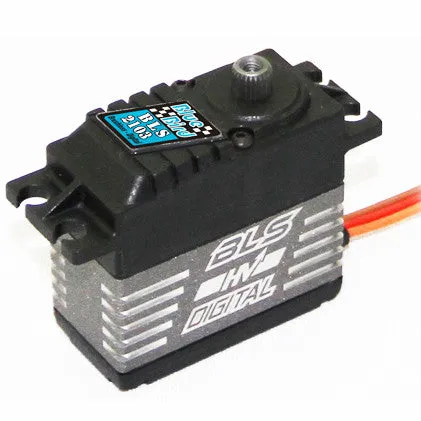

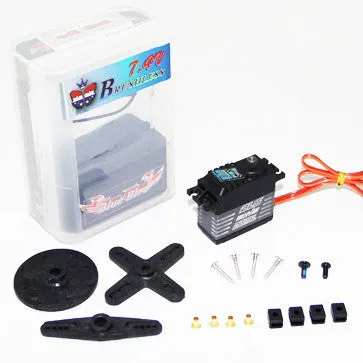

Product Picture / |
S-31A |
